Install tutorial starts right now. Step 1 remove the lower temperature radiator.
FF600636-69D7-4BBD-96A6-CB06CE8AD69E.jpeg 8F16C6C7-4E5E-40B8-BFB4-9D618D17AAD8.jpeg
Step 2 install support brackets for chiller. Tools required: 8mm, 10mm and 13mm sockets or wrenches. Swearing optional. Start with the smaller bracket, leave some what loose til final tightening sequence.

Attach cross bracket, take note of logo placement and holes the bolts are placed in.
My tightening sequence was rear bolt, front bolt, connector bolt. Attach chiller brick from below and start the middle nut.
the rear nut was the biggest pain in the ass to get started and tight. This is where swearing is recommended. I created a new one: dildo-headed-cock-fucker.
I have attached LTR removal instructions from the FSM.



Attachments

BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,588
Reactions
44,746
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
Install tutorial starts right now. Step 1 remove the lower temperature radiator.
View attachment 93244 View attachment 93245
Step 2 install support brackets for chiller. Tools required: 8mm, 10mm and 13mm sockets or wrenches. Swearing optional. Start with the smaller bracket, leave some what loose til final tightening sequence.

View attachment 93246
View attachment 93247
Attach cross bracket, take note of logo placement and holes the bolts are placed in.
View attachment 93249
My tightening sequence was rear bolt, front bolt, connector bolt. Attach chiller brick from below and start the middle nut.
View attachment 93248
the rear nut was the biggest pain in the ass to get started and tight. This is where swearing is recommended. I created a new one: dildo-headed-cock-fucker.
View attachment 93250
I have attached LTR removal instructions from the FSM.

Does the LTR go back in?



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,043
Does the LTR go back in?
No, permanently gone. The IC system is an always on system. With the KC I could have gone this route as well but choose not to. I regret that decision, it was like trying to stuff 20 lbs of shit in a 5lb bag with the limited room.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,044
All righty did a test fit with the bumper and cursing worse than given watch right before a shore visit...
Try number three
Absolutely seething at this point, texted @RGPIII that I might not run a bumper. Stepped back, meditated for ten minutes. Found my fucking zen...
Mounted on the above hole and wouldn't you fucking guess it.
While under here decided to mock up hoses and index the inlet port.

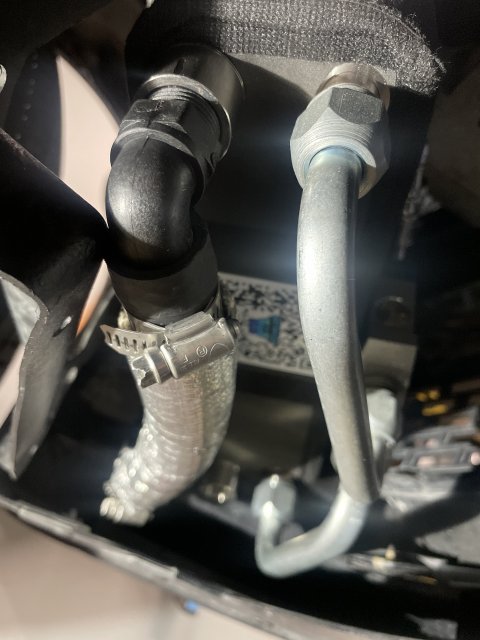

Did one final sanity check to make sure the AC fittings would get past the pump.
Hope this helps anyone from having a fitment issue. Moved onto the 3 way bypass. Since IC Chiller is always on the default is to send it right back to the pump. However for winter driving the IC system reverses the main SC condensers flow naturally it is exiting here but we are changing that.
The above is the SC outlet routed to the bypass.



RGPIII

500 Posts Club
Founding Member
8 Second Best E/T
HFCOTM
Member ID
#983
Messages
970
Reactions
1,773
Likes
182
City
Bridgeville
State
DE
Country
United States
Vehicle
2016 Challenger Hellcat
I will for sure be changing to Soft lines on mine to make it more direct and less routing the next time I have it apart for anything.



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
@fumanchu182 I'd appreciate if you made your own install thread for this so I can go back and reference it if I do one. :)



vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,706
Reactions
156,615
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
I agree. I know you have an on going build thread but would be helpful to make this its own thread



RGPIII

500 Posts Club
Founding Member
8 Second Best E/T
HFCOTM
Member ID
#983
Messages
970
Reactions
1,773
Likes
182
City
Bridgeville
State
DE
Country
United States
Vehicle
2016 Challenger Hellcat
guys the plug and play kit is really very simple to install. once you do it, you'll be very surprised at how simple it was.



vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,706
Reactions
156,615
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
guys the plug and play kit is really very simple to install. once you do it, you'll be very surprised at how simple it was.
I'm not very smart though:geek:



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,050
I'm not very smart though:geek:
We know... 😂 I'll keep this thread running and then compile at the end. Not like any of you are installing any time soon.



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
We know... 😂 I'll keep this thread running and then compile at the end. Not like any of you are installing any time soon.
You never know what I’m going to do 🤣 I may or may not purchase a bare block



vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,706
Reactions
156,615
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
You never know what I’m going to do 🤣 I may or may not purchase a bare block
Yep I can tell you Jon could buy a different engine, trailer, car, supercharger, chiller, nitrous at any given moment. I dont think he even knows what he is doing next:unsure:



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
Yep I can tell you Jon could buy a different engine, trailer, car, supercharger, chiller, nitrous at any given moment. I dont think he even knows what he is doing next:unsure:
I’m happy with the trailer for now. A 28 ft would be nice tho 🤣
Funny thing is you have known me long enough I’m not just talking I very well will end up buying anything I say I’ll buy



RGPIII

500 Posts Club
Founding Member
8 Second Best E/T
HFCOTM
Member ID
#983
Messages
970
Reactions
1,773
Likes
182
City
Bridgeville
State
DE
Country
United States
Vehicle
2016 Challenger Hellcat
I’m happy with the trailer for now. A 28 ft would be nice tho 🤣
Funny thing is you have known me long enough I’m not just talking I very well will end up buying anything I say I’ll buy
I will say my 28FT trailer is the perfect length with my hellcat in it. :censored::ROFLMAO:



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,055
Some progress, trials and tribulations. First off Fuck Dodge in all holes with dirty syringes. This hose is from the back of the coolant pump.
It necks from 1" to 7/8 instead of 3/4. Trying to get a pushlock to work was insanity. Solution was this hose.
Cut this much off from the long end. 2.75"
Afterwards easy day.
Use a 1" to 3/4 reducer and a 3/4 hose elbow.
Them on the 3 way great progress with the 150* fitting.
Dumps down beautifully.
Will be adding the final AN pushlocks soon. More to come!



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,056
ran some vibrant extremewrap 5EB52F82-9E92-4927-8F76-ABCEE72DD750.jpeg 38CAECA9-CA55-4A9D-865B-BE2747287CBE.jpeg
The above is my drain point, 12an union. EF55274F-F31A-4B6F-8246-B9FA3E13EA3F.jpeg
Neatly tucked if I do say so myself. 71323B03-C8DF-4F72-A9AC-2BAF55DD7711.jpeg 3F987E0E-3531-45EC-8875-82F8C1CC4282.jpeg
Fabbed up some aluminum mounts 9862AC81-DEDF-41C9-ADF8-47EE2AA253A0.jpeg

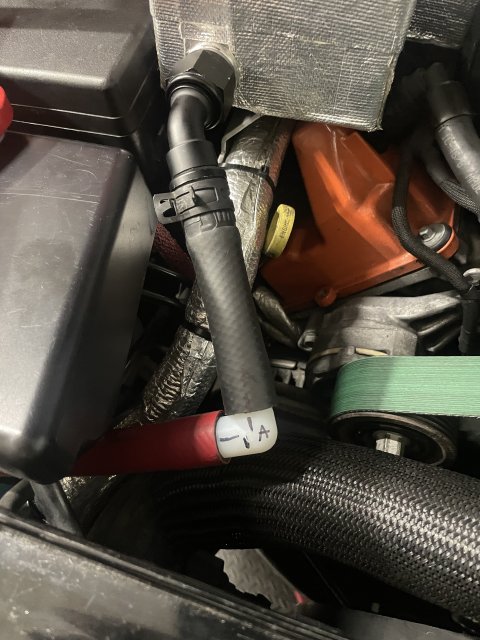

Started running the IC exit to the bmr tank 08B36DC5-90B9-4001-A084-5B71D49E3810.jpeg

for the more cramped spaces I need some more vibrant wrap but ran out :( this might be a monday thing as the speed shop is closed



Smitty

1000 Posts Club
Premium Account
HFCOTM
Member ID
#2260
Messages
1,859
Reactions
5,233
Likes
212
City
Canton
State
MI
Country
United States
Vehicle
2019 Challenger HC WB
Yep I can tell you Jon could buy a different engine, trailer, car, supercharger, chiller, nitrous at any given moment. I dont think he even knows what he is doing next:unsure:
Sounds like he’s got a disease. He isn’t stable. 😂 Might want to keep an eye on him. 😂



jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
@fumanchu182 I know you are always up for a good time. Want to go in on a nitrious kit with me so I can be a dealer:p If we start at a 100 shot im sure we will be fine



DavidKFla

Poster Club Hall of Fame
Premium Account
U.S. Air Force Veteran
10 Second Best E/T
HFCOTM
Member ID
#6741
Messages
27,626
Reactions
125,071
Likes
402
City
East Coast
State
FL
Country
United States
Vehicle
2018 Charger Hellcat
I’m happy with the trailer for now. A 28 ft would be nice tho 🤣
Funny thing is you have known me long enough I’m not just talking I very well will end up buying anything I say I’ll buy
28 footer is still a bit short. I would recommend a 34' triaxle.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,488
Reactions
8,486
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #1,060
Absolutely not. 😂

@fumanchu182 I know you are always up for a good time. Want to go in on a nitrious kit with me so I can be a dealer:p If we start at a 100 shot im sure we will be fine
